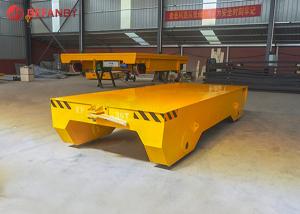

Warehouse Material Transfer Carts Q235 Push Railroad Hand Cart 5Ton

Brand Name : BEFANBY

Model Number : KP

Certification : CE, SGS, ISO9001

Place of Origin : Henan, China

MOQ : 1 set/sets

Price : Negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 600 sets per year

Delivery Time : 15-20 working days for usual delivery

Packaging Details : The railroad hand cart will be packed by the tarp, the parts will be packed y the high quality wooden case.

After-sales service provided : Engineers available to service machinery overseas

Warranty : 1 Year

Application : Industry field, workshop ,production line

Capacity : 1-500 ton for railroad hand cart

Power supply : no powered/munual

Product name : Warehouse Forklift Push Railroad Hand Cart 5 Ton Capacity

Material : Q235

Operation type : winch, forklift, manual towing

Color : Yellow, Gray, Red or as your needs

Contact Now

Warehouse Forklift Push Railroad Hand Cart 5 Ton Capacity

BEFANBY manufactured the railroad hand cart can be pushed by workshop worker or towed by other handling tools,such as winch, forklift or tractor.

It is powered by forklift, so a drawbar is needed. There are two kinds of drawbar type, one is fixed length drawbar, the

other is adjustable drawbar. The length can be customized as per customer's demand. The turning radius is designed as per cart dimension.

Advantages of railroad hand cart

  • Box girder structure, not easy to deform
  • Low cost and Long Service Lifetime
  • Anti-explosion and anti- high temperature, etc., bad environment
  • Cab be towed or push by manual or other tools
  • Durable
  • Environmental

​Warehouse Material Transfer Carts Q235 Push Railroad Hand Cart 5Ton

Main of Railroad Hand Cart

The main parts of the railroad cart includes cart frame, towed hook, cast wheel, control box, etc.
Warehouse Material Transfer Carts Q235 Push Railroad Hand Cart 5Ton

The parameter of railroad hand cart
Model KP-2t KP-20t KP-50t KP-100t KP-150t
Rated Load(t) 2 20 50 100 150
Table Size(mm) Length(L) 2000 4000 5500 6500 10000
Width(W) 1500 2200 2500 2800 3000
Heigth(H) 450 550 650 850 1200
Wheel Base(mm) 1200 2800 4200 4900 7000
Rail Inner Gauge(mm) 1200 1435 1435 2000 2000
Wheel Diameter(mm) 270 350 500 600 600
Wheel Quantity 4 4 4 4 8
Ground Clearance(mm) 50 50 50 75 75
Max Wheel Load(KN) 14.4 77.7 174 343.8 265.2
Reference Weight(t) 2.8 5.9 8 14.6 26.8
Recommended Rail Model P15 P24 P43 QU100 QU100

Processing of no power transfer cart china factory

Warehouse Material Transfer Carts Q235 Push Railroad Hand Cart 5Ton

Packing& Delivery of no power transfer cart on rails

Warehouse Material Transfer Carts Q235 Push Railroad Hand Cart 5Ton

Company Introduce

Xinxiang Hundred Percent Electrical and Mechanical Co., Ltd is a collection of research, design, manufacture, installation and after-sales service of electric handling bogie ,transfer carts as one of the professional manufacturing company, which has a modernized management team and excellent staff.And our prodcuts gets CE, SASO,SGS,ISO certificate and other 8 national patent, our products have been exported to more than 40 countries and regions,such as Germany, Mexico, USA, Turkey, South Africa, Singapore etc.

Warehouse Material Transfer Carts Q235 Push Railroad Hand Cart 5Ton

You can copy the following options and click here to select your specific requirement for the transfer cart to send us. And then the proper solution and price will be sent to you.

1. The load capacity of the transfer cart is ( ) ton.

2. The table size is ( ) mm (L) * ( ) mm (W)*( ) mm (H).

3. The transfer cart runs on the rails or common floor?

4. Whether exist turning?

5. Whether has other special requirement?
