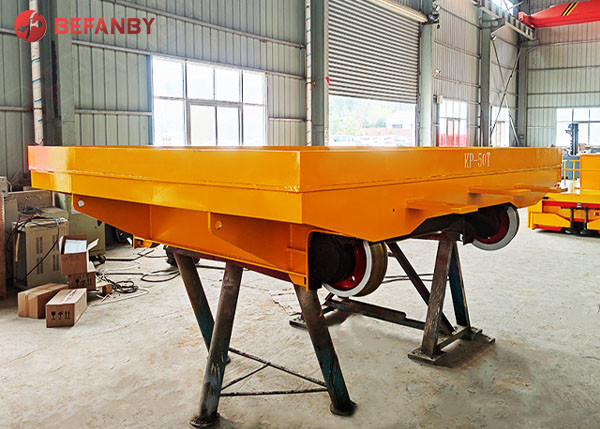

Easy Operation No Powered Transfer Trolley

Brand Name : BEFANBY

Model Number : BWT

Certification : CE, SGS, ISO9001

Place of Origin : Henan, China

MOQ : 1 set/sets

Price : Negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 1500 sets per year

Delivery Time : 15-20 working days for usual delivery

Packaging Details : The unpowered transfer vehicle will be packed by the tarp, the parts will be packed y the high quality wooden case.

After-sales service provided : Engineers available to service machinery overseas

Warranty : 1 Year

Application : Material transfer, workshop ,production line

Capacity : 1-500 ton for steel coil trailer

Power supply : no powered/munual

Product name : Solid Wheel 15t Unpowered Transfer Vehicle With Forklift Towing

Material : Q235

Operation type : winch, forklift towing

Color : Yellow, Gray, Red or as your needs

Contact Now

Easy Operation No Powered Transfer Trolley

The no powered rail transfer cart is a kind of handling equipment that runs on the track by external traction or human push. It has a simple structure and stable operation. It is widely used in the medium and short distance transportation of workpieces and materials. The rail trailer body has no drive system, so the maintenance cost is low. It is suitable for material turnover workshops or scenes that require multi-vehicle collaborative transportation.

The equipment has the advantages of strong bearing capacity, stable operation, and solid structure. It is suitable for a variety of handling occasions, such as: machinery manufacturing, metallurgical casting, mold transfer and other industries. According to the shape of the transported material and the working conditions, the car table can be customized with V-frames, guardrails, roller devices and other structures to meet the needs of various material handling.

Advantages of unpowered transfer vehicle

  • Box girder structure, not easy to deform
  • Low cost with high frequency
  • Anti-explosion and anti- high temperature
  • Cab be towed or push by worker
  • Durable and environmental

​Easy Operation No Powered Transfer Trolley

Main of no power transfer vehicle

The main parts of the forklift transfer cart includes cart frame, towed hook, cast wheel, control box, etc.


Easy Operation No Powered Transfer Trolley

The parameter of non power steel coil trailer
Model KP-2t KP-20t KP-50t KP-100t KP-150t
Rated Load(t) 2 20 50 100 150
Table Size(mm) Length(L) 2000 4000 5500 6500 10000
Width(W) 1500 2200 2500 2800 3000
Heigth(H) 450 550 650 850 1200
Wheel Base(mm) 1200 2800 4200 4900 7000
Rail Inner Gauge(mm) 1200 1435 1435 2000 2000
Wheel Diameter(mm) 270 350 500 600 600
Wheel Quantity 4 4 4 4 8
Ground Clearance(mm) 50 50 50 75 75
Max Wheel Load(KN) 14.4 77.7 174 343.8 265.2
Reference Weight(t) 2.8 5.9 8 14.6 26.8
Recommended Rail Model P15 P24 P43 QU100 QU100

Easy Operation No Powered Transfer Trolley

Company Introduce

Xinxiang Hundred Percent Electrical and Mechanical Co., Ltd is a collection of research, design, manufacture, installation and after-sales service of electric handling bogie ,transfer carts as one of the professional manufacturing company, which has a modernized management team and excellent staff.And our prodcuts gets CE, SASO,SGS,ISO certificate and other 8 national patent, our products have been exported to more than 40 countries and regions,such as Germany, Mexico, USA, Turkey, South Africa, Singapore etc.

Easy Operation No Powered Transfer TrolleyEasy Operation No Powered Transfer TrolleyEasy Operation No Powered Transfer Trolley

You can copy the following options and click here to select your specific requirement for the transfer cart to send us. And then the proper solution and price will be sent to you.

1. The load capacity of the transfer cart is ( ) ton.

2. The table size is ( ) mm (L) * ( ) mm (W)*( ) mm (H).

3. The transfer cart runs on the rails or common floor?

4. Whether exist turning?

5. Whether has other special requirement?
